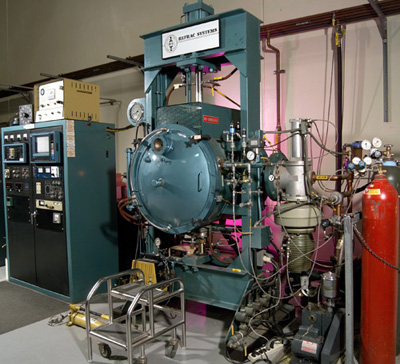

VACUUM INDUSTRIES SERIES 3600, MODEL 3630, 30 TON VACUUM HOT PRESS FURNACE WITH AN 18" X 18" X 30" ALL MOLYBDENUM HOT ZONE
The system is configured with a cryotrapped Varian VHS-6 diffusion pump stack, and has also been used only with low vapor pressure braze al1oys to keep the hot zone "titanium clean". This system includes gas manifolding and controls to run purified hydrogen or any inert gas partial pressure operations, which may be desired.
Furnace surveys and calibrations for this system demonstrate a MIL-SPEC temperature uniformity of better than +/- 10°F as tested in full compliance with AMS 2750 every 90 days. The moly zone maximum operating temperature is 1,230°C, but the system is also configured with induction power feedthroughs as may be needed.
Furnace surveys and calibrations for this system demonstrate a MIL-SPEC temperature uniformity of better than +/- 10°F as tested in full compliance with AMS 2750 every 90 days. The moly zone maximum operating temperature is 1,230°C, but the system is also configured with induction power feedthroughs as may be needed.
