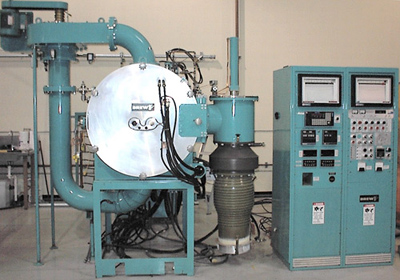

ADVANCED THERMAL TECHNOLOGIES, INC BREW ASSOCIATES, MODEL 912 HIGH VACUUM FURNACE WITH GAS FAN QUENCH COOLING AND AN 18"W X 18"H X 36"D SIX SIDED HEATING ALL MOLYBDENUM HOT ZONE
This furnace has 6-sided molybdenum heating elements for rapid and very uniform heating of parts up to 1,230°C. The system also has a rated gas fan quench cooling rate of -250°F/Min for furnace loads up to 200 LBM.
It routinely runs at 10-6 Torr pumped with a cryotrapped Varian VHS-10 diffusion pump stack. The system has demonstrated MIL-SPEC temperature uniformity of better than: +/-10°F up to 1,230°C maximum as demonstrated by full quarterly survey testing in accordance with AMS 2750.
It routinely runs at 10-6 Torr pumped with a cryotrapped Varian VHS-10 diffusion pump stack. The system has demonstrated MIL-SPEC temperature uniformity of better than: +/-10°F up to 1,230°C maximum as demonstrated by full quarterly survey testing in accordance with AMS 2750.
